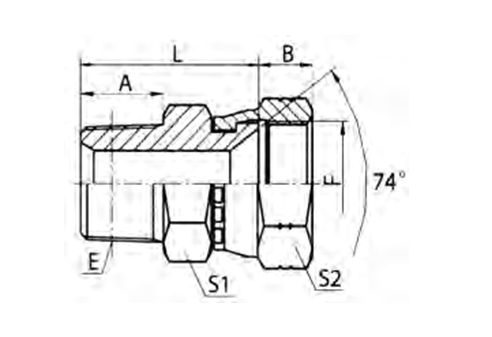

PART NO. THREAD DIMENSIONS E F A B L S1 S2 2TJ-02-04SP R1/8"X28 7/16"X20 10 9.5 24 12 17 2TJ-04SP R1/4"X19 7/16"X20 14.5 9.5 28.5 14 17 2TJ-04-05SP R1/4"X19 1/2"X20 14.5 9 29 14 19 2TJ-04-06SP R1/4"X19 9/16"X18 14.5 9.5 29.5 14 19 2TJ-06-05SP R3/8"X19 1/2"X20 15 9 29.5 19 19 2TJ-06SP R3/8"X19 9/16"X18 15 9.5 30.5 19 19 2TJ-06-08SP R3/8"X19 3/4"X16 15 10.8 31.5 19 24 2TJ-08SP R1/2"X14 3/4"X16 20 10.8 37.5 22 24 2TJ-08-10SP R1/2"X14 7/8"X14 20 12 38.5 24 27 2TJ-08-12SP R1/2"X14 1.1/16"X12 20 13 41.5 27 32 2TJ-12SP R3/4"X14 1.1/16"X12 20 13 41.5 30 32 2TJ-12-16SP R3/4"X14 1.5/16"X12 20 14 43.5 32 41 2TJ-16SP R1"X11 1.5/16"X12 25.5 14 48.5 36 41 2TJ-20SP R1.1/4"X11 1.5/8"X12 26.5 15 55 46 50 2TJ-24SP R1.1/2"X11 1.7/8"X12 26.5 19 59.5 50 55
BSPT MALE / JIC FEMALE 74° SEAT
PEHEL Hydraulic Model: P2TJ-SP
