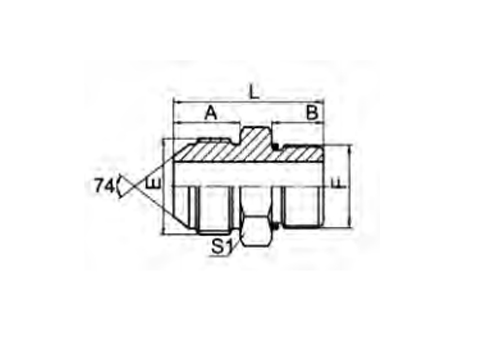

THREAD D O-RING DIMENSIONS PART NO. E F TUBE O.D. F A B L S1 S2 1QO-16-06 M16X1.5 9/16"X18 10 O906 18 9.9 35 17 22 1QO-18-08 M18X1.5 3/4"X16 12 O908 18 11.13 37 22 24 1QO-22-10 M22X1.5 7/8"X14 14 O910 19.5 12.7 42 27 27 1QO-27-12 M27X1.5 1.1/16"X12 18 O912 20 15.1 46 32 32 1QO-30-12 M30X1.5 1.1/16"X12 20 O912 23 15.1 49 32 36 1QO-33-16 M33X2 1.5/16"X12 22 O916 26 15.1 54 38 38 1QO-39-16 M39X2 1.5/16"X12 28 O916 26 15.1 58 41 46 1QO-42-20 M42X2 1.5/8"X12 32 O920 28.5 15.1 58 50 50

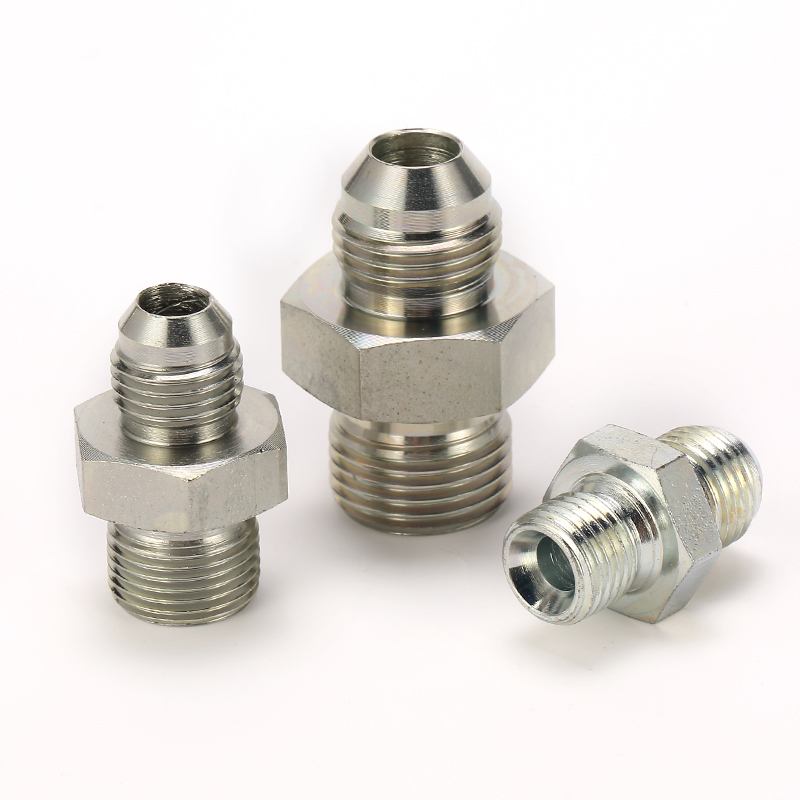

Metric Male 74° Cone to SAE O-Ring Boss Adapter | Carbon Steel Hydraulic Fitting
PEHEL Hydraulic Model: P1QO/P1QO-RN
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: Nipple
Thread Type: Metric SAE
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Dual-Seal Reliability: Combines a precision 74° cone with a SAE O-ring boss interface, creating a redundant sealing system that prevents leaks under high vibration and pressure.
2.Superior Corrosion Resistance: Finished with silver zinc plating, this carbon steel adapter offers excellent protection against rust, outperforming standard yellow zinc finishes in harsh environments.
3.High-Pressure Performance: Designed specifically for high-tensile applications, this fitting maintains integrity in heavy-duty construction and agricultural machinery.
4.Pehel Branded Quality Assurance with strict dimensional control and thread inspection for consistent, leak-free hydraulic connections.
5.Custom OEM Solutions Available, supporting varied thread types, materials, and finishes to fit your exact hydraulic assembly requirements.
