THREAD TUBE O.D. DIMENSIONS PART NO. E F D A B S1 S2 1QN9-12-02 M12X1.5 Z1/8"X27 6 25.5 21 11 14 1QN9-12-04 M12X1.5 Z1/4"X18 6 28 25.5 14 14 1QN9-14-02 M14X1.5 Z1/8"X27 8 30.2 23.5 14 17 1QN9-14-04 M14X1.5 Z1/4"X18 8 30.2 25.5 14 17 1QN9-16-04 M16X1.5 Z1/4"X18 10 32 26.5 16 22 1QN9-16-06 M16X1.5 Z3/8"X18 10 32 29.5 16 22 1QN9-16-08 M16X1.5 Z1/2"X14 10 36 36.7 22 22 1QN9-18-04 M18X1.5 Z1/4"X18 12 34 28.7 19 24 1QN9-18-06 M18X1.5 Z3/8"X18 12 34 31 19 24 1QN9-22-06 M22X1.5 Z3/8"X18 14 37.5 32.5 22 27 1QN9-22-08 M22X1.5 Z1/2"X14 14 37.5 36.7 22 27 1QN9-27-08 M27X1.5 Z1/2"X14 18 41.5 40 27 32 1QN9-27-12 M27X1.5 Z3/4"X14 18 41.5 44 27 32 1QN9-27-16 M27X1.5 Z1"X11.5 18 45.5 50 33 32 1QN9-30-12 M30X1.5 Z3/4"X14 20 45.8 45 30 36 1QN9-36-16 M36X2 Z1"X11.5 25 51.5 51.5 36 41 1QN9-39-16 M39X2 Z1"X11.5 28 55.5 54.5 41 46 1QN9-42-20 M42X2 Z1.1/4"X11.5 32 57 54.5 41 50 1QN9-45-16 M45X2 Z1"X11.5 34 62.5 58.5 48 55 1QN9-45-20 M45X2 Z1.1/4"X11.5 34 62.5 58.5 48 55 1QN9-45-24 M45X2 Z1.1/2"X11.5 34 62.5 63 48 55

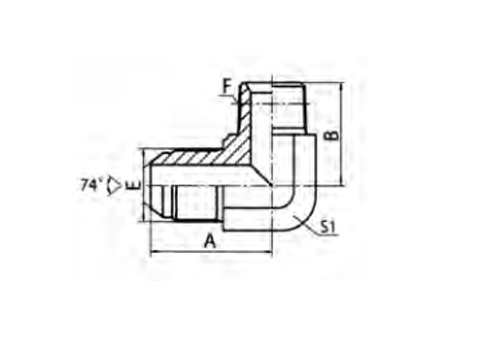

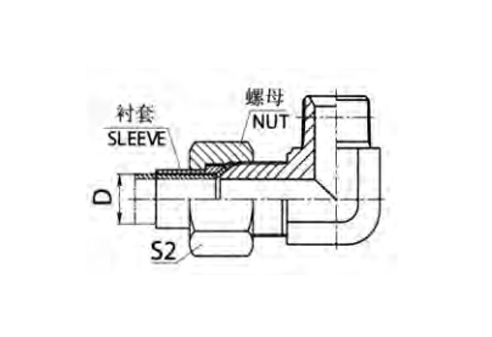

90° ELBOW METRIC MALE 74° CONE
PEHEL Hydraulic Model: P1QN9/P1QN9-RN
