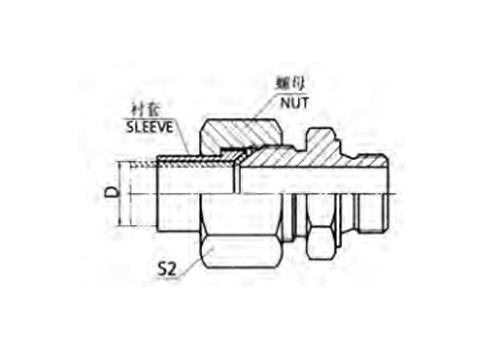

THREAD D DIMENSIONS PART NO. E F TUBE O.D. BONDED SEAL A B L S1 S2 1QL-10 M10X1 M10X1 5 ZHD-10 12 8 27 17 14 1QL-12 M12X1.5 M12X1.5 6 ZHD-12 15.7 12 35.2 17 14 1QL-12-10 M12X1.5 M10X1 6 ZHD-10 15.7 8 30.5 17 14 1QL-14 M14X1.5 M14X1.5 8 ZHD-14 17 12 36.5 19 17 1QL-14-10 M14X1.5 M10X1 8 ZHD-10 17 8 32 17 17 1QL-14-12 M14X1.5 M12X1.5 8 ZHD-12 17 12 36.5 17 17 1QL-14-16 M14X1.5 M16X1.5 8 ZHD-16 17 12 37 22 17 1QL-16 M16X1.5 M16X1.5 10 ZHD-16 18 12 38 22 22 1QL-16-14 M16X1.5 M14X1.5 10 ZHD-14 18 12 37 19 22 1QL-18 M18X1.5 M18X1.5 12 ZHD-18 18 12 39.5 24 24 1QL-18-16 M18X1.5 M16X1.5 12 ZHD-16 18 12 38 22 24 1QL-22 M22X1.5 M22X1.5 14 ZHD-22 19.5 14 43.5 27 27 1QL-22-18 M22X1.5 M18X1.5 14 ZHD-18 19.5 12 41 24 27 1QL-27 M27X1.5 M27X2 18 ZHD-27 20 16 49 34 32 1QL-27-22 M27X1.5 M22X1.5 18 ZHD-22 20 14 44 30 32 1QL-30-27 M30X1.5 M27X2 20 ZHD-27 23 16 50 34 36 1QL-33 M33X2 M33X2 22 ZHD-33 26 18 57 41 38 1QL-33-27 M33X2 M27X2 22 ZHD-27 26 16 55 34 38 1QL-36-33 M36X2 M33X2 25 ZHD-33 26 18 58 41 41 1QL-39-33 M39X2 M33X2 28 ZHD-33 26 18 59 41 46 1QL-42 M42X2 M42X2 32 ZHD-42 28.5 20 65.5 50 50 1QL-45-42 M45X2 M42X2 34 ZHD-42 28.5 20 65.5 50 55

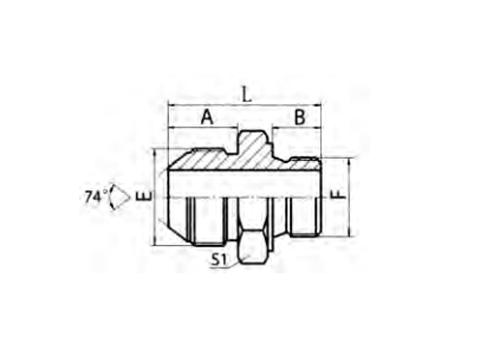

METRIC MALE 74° CONE
PEHEL Hydraulic Model: P1QL/P1QL-RN
QTY:
