THREAD D O-RING DIMENSIONS PARTNO. E F TUBE O.D. F A B S1 S2 S3 1QG9-14-04OG M14X1.5 G1/4"X19 8 O111 29 31.3 14 19 17 1QG9-16-06OG M16X1.5 G3/8"X19 10 O113 33 35.8 16 22 22 1QG9-18-06OG M18X1.5 G3/8"X19 12 O113 34 36.8 19 22 24 1QG9-18-08OG M18X1.5 G1/2"X14 12 O115 36 43.2 22 27 24 1QG9-22-08OG M22X1.5 G1/2"X14 14 O115 37.5 43.2 22 27 27 1QG9-27-12OG M27X1.5 G3/4"X14 18 O119 41.5 49.3 27 32 32 1QG9-30-12OG M30X1.5 G3/4"X14 20 O119 45.8 52 30 32 36 1QG9-39-16OG M39X2 G1"X11 28 O217 55.5 58 41 41 46 1QG9-45-20OG M45X2 G1.1/4"X11 34 O222 62.5 63 48 50 55

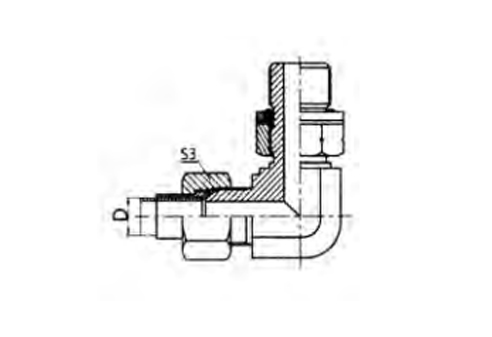

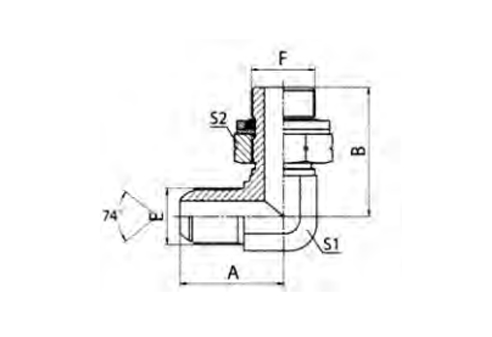

90° ELBOW METRIC MALE 74° CONE
PEHEL Hydraulic Model: P1QG9-OG/P1QG9-OG/RN
QTY:
