PART N0. THREAD E HOSE BORE DIMENSIONS DN DASH C S2 H P20292-33-12T M33X2 20 12 13 41 60 -36-12 M36X2 20 12 13 41 60 -36-14 M36X2 22 14 13 41 61 -39-14 M39X2 22 14 13 46 63 -39-16 M39X2 25 16 13 46 67.5 -42-16 M42X2 25 16 15 50 67.5 -45-16 M45X2 25 16 15 55 67.5 -45-20 M45X2 32 20 15 55 78.5 -52-20 M52X2 32 20 17 60 78.5 -52-24 M52X2 40 24 17 60 92

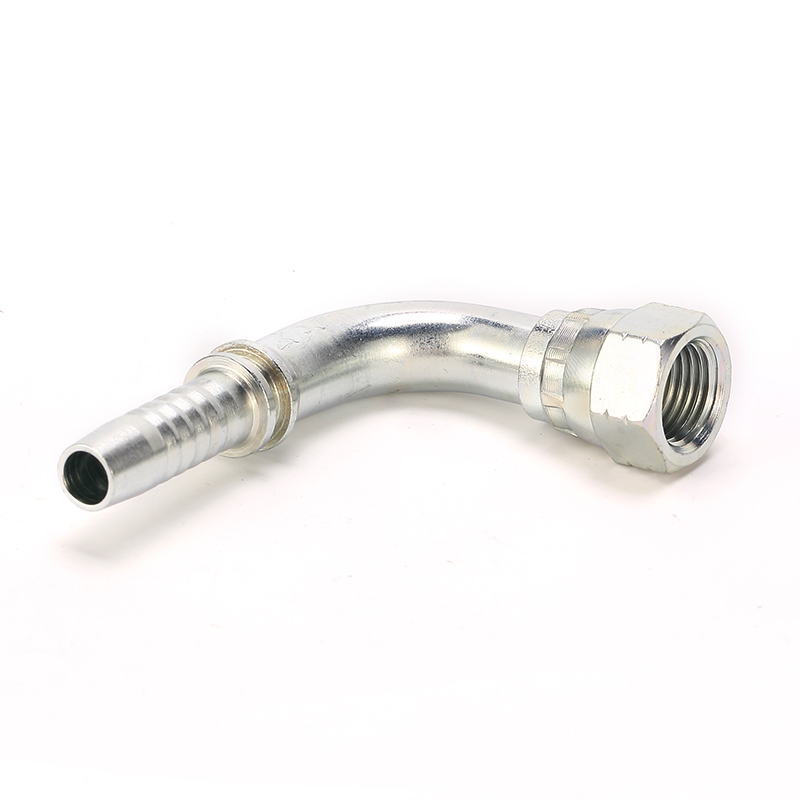

Pehel | 90º GB Metric Female Flat Seat Adapter | Hydraulic Elbow Fitting
PEHEL Hydraulic Model: P20292-T
QTY:
90 degree metric female flat seat hydrulic fitting 20291
- Material: Carbon steel, stainless steel
- Brand: Pehel, OEM
- Color: Silver color zinc plating
- Connector Type: 90° Elbow Flat Seat Adapter
- Thread Type: GB Metric Female Flat Seat Thread
About the item:
- 1.Silver zinc‑plated hydraulic elbow fitting provides superior anti‑corrosion performance for long‑term industrial operation
- 2.Precisely machined GB metric flat seat surface achieves excellent leak‑proof sealing under high‑pressure working conditions
- 3.Compact 90‑degree flat seat elbow optimizes layout for narrow‑space hydraulic system installation
- 4.This GB metric female flat seat adapter supports OEM customization for diverse hydraulic equipment requirements
- 5.Strict dimensional inspection for every hydraulic elbow fitting, stable and reliable for fluid transfer applications
