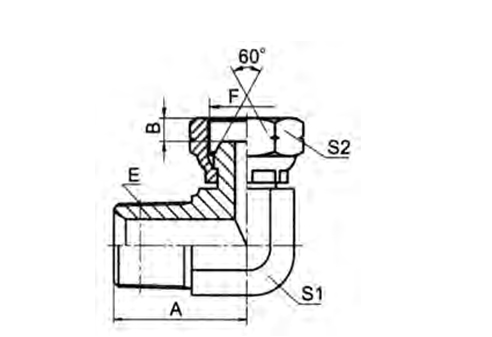

THREAD DIMENSIONS PART NO. E F A B S1 S2 2TB9-02SP R1/8"X28 G1/8"X28 21 6 11 14 2TB9-04SP R1/4"X19 G1/4"X19 26 5 14 19 2TB9-06SP R3/8"X19 G3/8"X19 28 6.5 16 22 2TB9-06-08SP R3/8"X19 G1/2"X14 31 7.8 19 27 2TB9-08-06SP R1/2"X14 G3/8"X19 36 6.5 22 22 2TB9-08SP R1/2"X14 G1/2"X14 36 7.8 22 27 2TB9-08-12SP R1/2"X14 G3/4"X14 37 10.5 24 32 2TB9-12-08SP R3/4"X14 G1/2"X14 43.5 7.8 27 27 2TB9-12SP R3/4"X14 G3/4"X14 43.5 10.5 27 32 2TB9-16SP R1"X11 G1"X11 50 11 33 41 2TB9-20SP R1.1/4"X11 G1.1/4"X11 57.5 11.5 41 50 2TB9-24SP R1.1/2"X11 G1.1/2"X11 62.5 12.5 48 55
90° ELBOW BSPT MALE / BSP FEMALE 60° CONE
PEHEL Hydraulic Model: P2TB9-SP
QTY:
