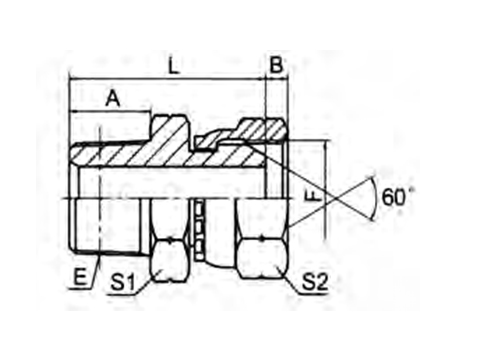

THREAD DIMENSIONS PART NO. E F A B L S1 S2 2TB-02SP R1/8"X28 G1/8"X28 10 6 25 12 14 2TB-04SP R1/4"X19 G1/4"X19 14.5 5 31.5 17 19 2TB-06SP R3/8"X19 G3/8"X19 15 6.5 33 19 22 2TB-06-04SP R3/8"X19 G1/4"X19 15 5 32 19 19 2TB-06-08SP R3/8"X19 G1/2"X14 15 7.8 35 19 27 2TB-08SP R1/2"X14 G1/2"X14 20 7.8 42 22 27 2TB-08-06SP R1/2"X14 G3/8"X19 20 6.5 40 22 22 2TB-08-12SP R1/2"X14 G3/4"X14 20 10.5 45 27 32 2TB-12SP R3/4"X14 G3/4"X14 20 10.5 45 30 32 2TB-12-08SP R3/4"X14 G1/2"X14 20 7.8 44 30 27 2TB-12-16SP R3/4"X14 G1"X11 20 11 47 32 41 2TB-16SP R1"X11 G1"X11 25.5 11 52.5 36 41 2TB-16-12SP R1"X11 G3/4"X14 25.5 10.5 51.5 36 32 2TB-20-16SP R1.1/4"X11 G1"X11 26.5 11 55.5 46 41 2TB-20SP R1.1/4"X11 G1.1/4"X11 26.5 11.5 58 46 50 2TB-24SP R1.1/2"X11 G1.1/2"X11 26.5 12.5 60.5 50 55 2TB-32SP R2"X11 G2"X11 30 17 68 65 70
BSPT MALE / BSP FEMALE 60° CONE
PEHEL Hydraulic Model: P2TB-SP
QTY:
