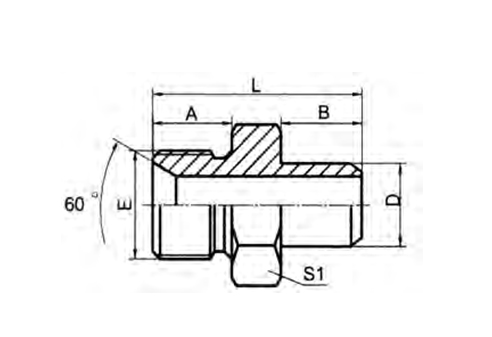

THREAD DIMENSIONS PART NO. E TUBEO.D. A B D L S1 1BW-04-10 G1/4"X19 10 12 7 10 25 19 1BW-06-14 G3/8"X19 14 13.5 8 14 29.5 22 1BW-08-18 G1/2"X14 18 16 10 18 36 27 1BW-12-22 G3/4"X14 22 18.5 10 22 39.5 32 1BW-12-28 G3/4"X14 28 18.5 12 28 41.5 32 1BW-16-28 G1"X11 28 20.5 12 28 45.5 41 1BW-16-30 G1"X11 30 20.5 12 30 45.5 41 1BW-20-34 G1.1/4"X11 34 20.5 14 34 49.5 50 1BW-20-36 G1.1/4"X11 36 20.5 14 36 49.5 50 1BW-20-42 G1.1/4"X11 42 20.5 16 42 51.5 50 1BW-24-36 G1.1/2"X11 36 23 14 36 52 55 1BW-24-42 G1.1/2"X11 42 23 16 42 54 55 1BW-24-50 G1.1/2"X11 50 23 16 50 54 55
BSP Male 60° Cone / Bonded Seal Weld Adapter with Butt-Weld Tube End
PEHEL Hydraulic Model: P1BW
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: Straight Adapter
Thread Type: BSP
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Dual-Seal Compatibility: This BSP male weld adapter works as both 60° cone and bonded seal connector, letting you switch gasket types without changing fittings.
2.Butt-Weld Ready: Precision-machined butt-weld tube fitting tail ensures full-penetration welding, creating stronger joints than socket-weld in high-vibration hydraulic lines.
3.Silver Zinc Defense: Silver color zinc plating on the carbon steel hydraulic adapter prevents oxidation at weld heat-affected zones, keeping threads clean for reuse.
4.Material Choice: Opt for economical carbon steel or marine-grade stainless steel to match corrosion exposure in your Pehel-specification systems.
5.Pehel OEM Flexibility: As an OEM partner, Pehel delivers custom BSP thread pitches and weld-end diameters, ensuring this dual-use adapter fits proprietary equipment.
