Pehel | PHC333 |Hydraulic Manifold Subplate

Pehel | PHC333 |Hydraulic Manifold Subplate

PEHEL Hydraulic Model: PHC333

QTY:

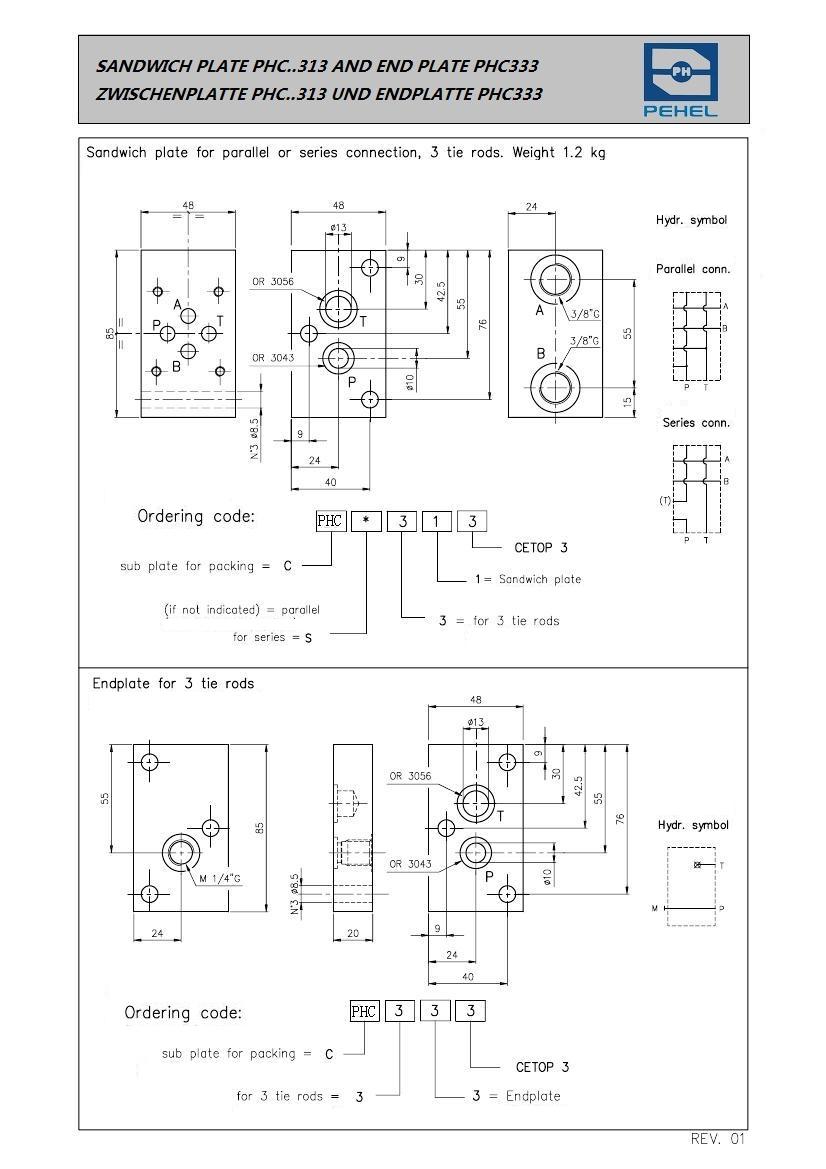

  • 1. Sandwich plate for parallel or series connection, 3 tie rods. Weight=1.2kg
    2. Endplate for 3 tie rods.
    3. High performance and cost effective.
    4. NPT, SAE, PT thread for all parts is available

  • Material: Aluminum

    Brand: Pehel, OEM

    Color: Silver

    Surface Treatment: Oxidation

  • About the item:


    1. 1. The hydraulic oil block and manifold reduce piping and leaks.

    2. 2. The oil block integrates valves into one compact unit.

    3. 3. The manifold subplate simplifies installation and alignment.

    4. 4. The hydraulic oil block enables customized circuit design.

    5. 5. The manifold and manifold subplate improve system reliability.

  • Specification
  • You May Also Like


  • NPT,SAE,PT thread for all parts is available


  • Component
    		Description
    		Weight
    		Ordering Code
    		Hydr. Symbol
    		Connections
    		Notes
    Sandwich Plate
    		For parallel or series connection; for 3 tie rods
    		1.2 kg
    		PHC 3 (CETOP3)
    		Parallel / Series
    		3/8" G (OR3043)
    		Default = parallel; add "S" for series
    End Plate
    		For 3 tie rods.
    		Not specified
    		PHC 3 3 (CETOP3）
    		Shown (M1/4" port)
    		M1/4" (OR3056)
    		Plate type = 3 (end plate).

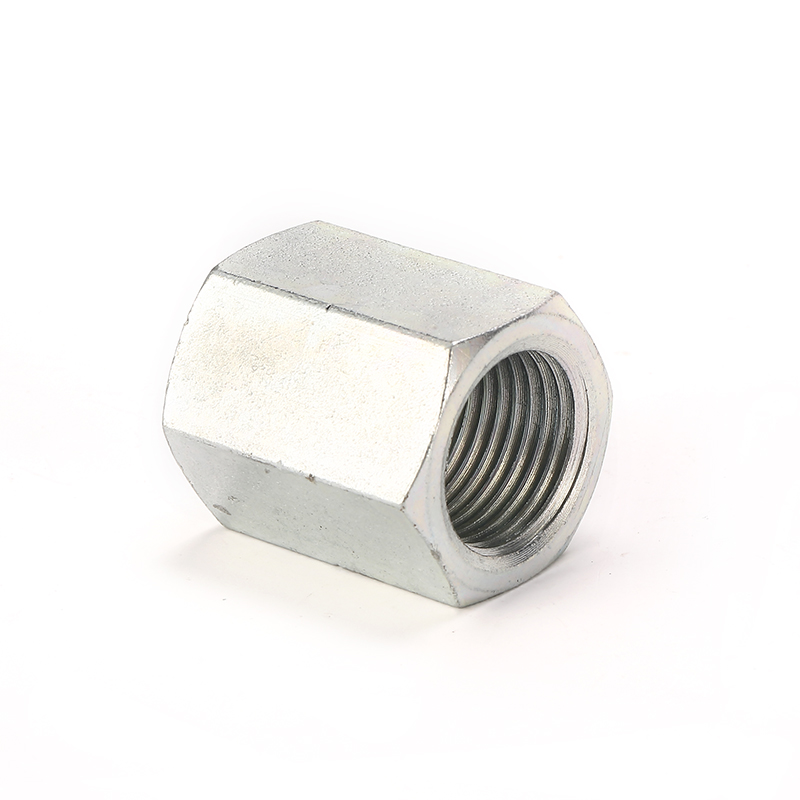

  • Pehel/P7B/BSP female fixed adapter
    Details

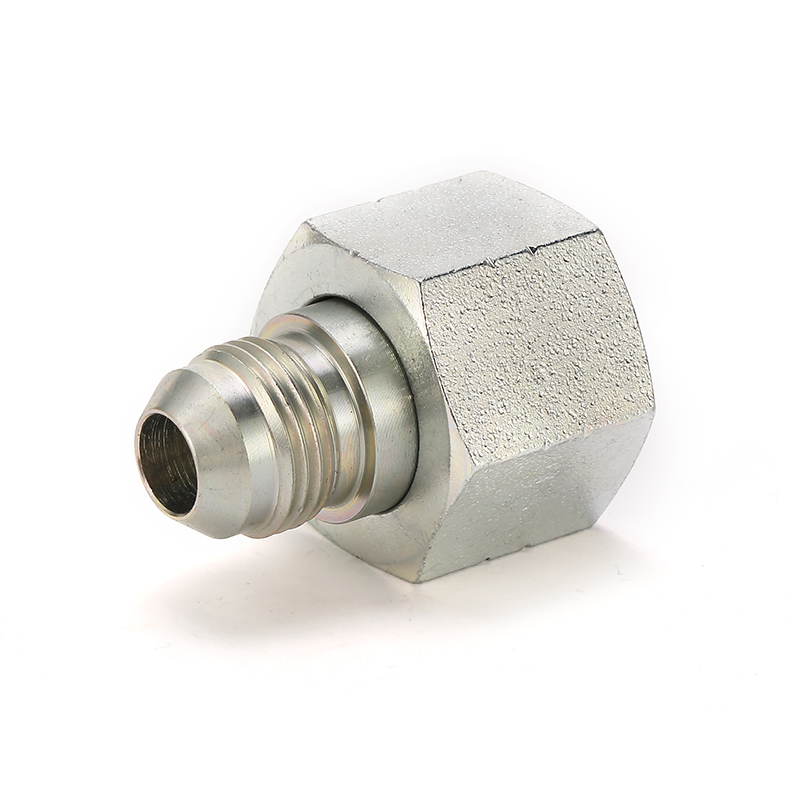

    Pehel/P5J-S/JIC male to female swivel reducer adapter

    Details

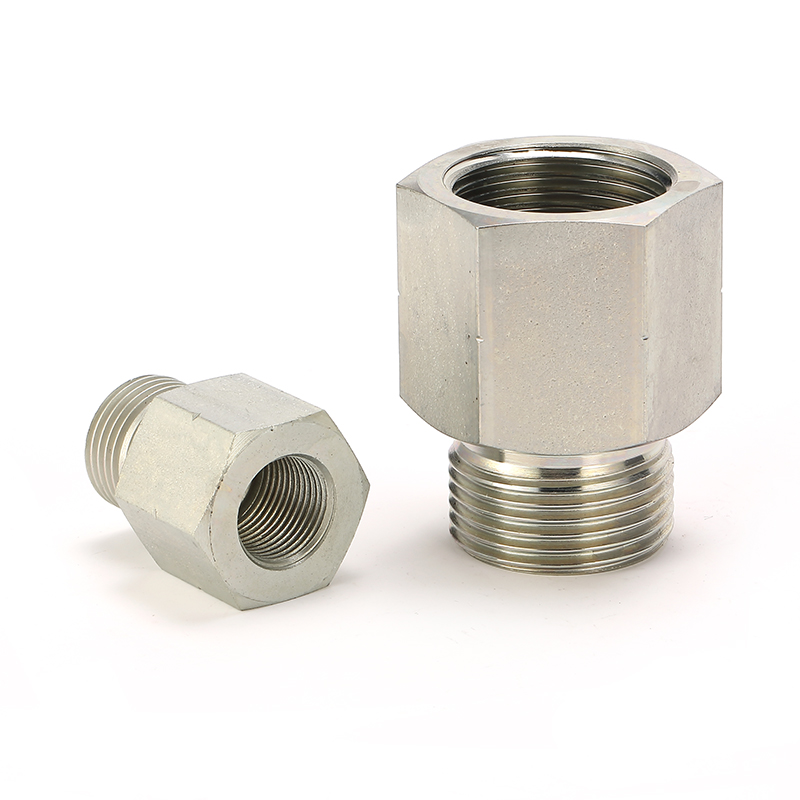

    Pehel/P5BN/BSP male to NPT female reducer adapter

    Details

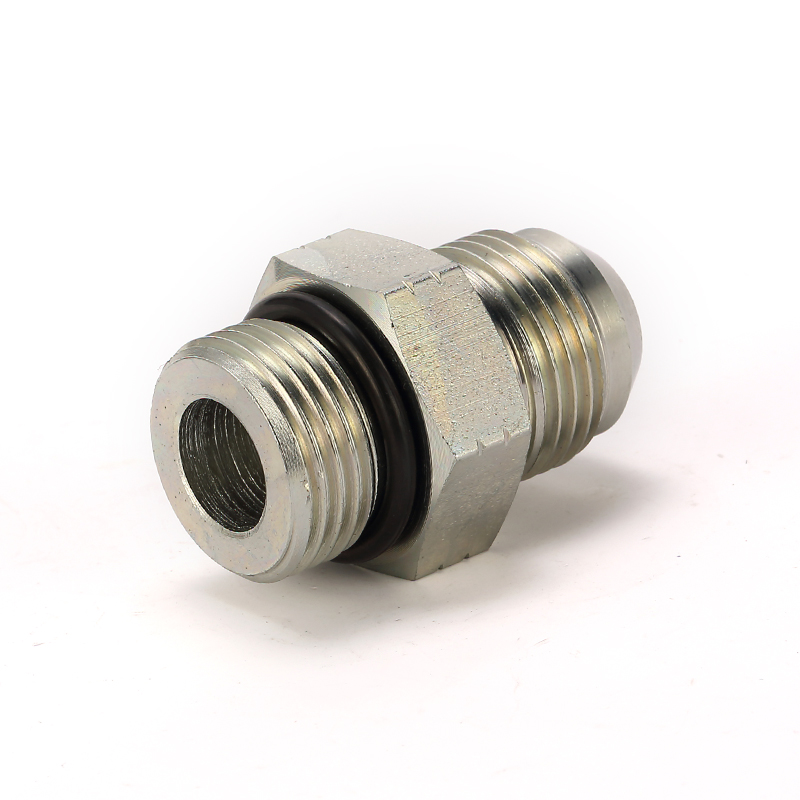

    Pehel/P1JO/JIC to SAE o-ring male adapter
